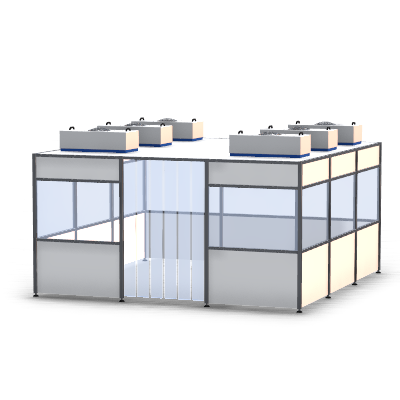

Cleanroom Cabins

Infinity Flexible, engineered for adaptability and precision

Flexible design and layout
Extendable and upgrade options
Perfect fit for all process requirements
Low aquisition costs
Low noise level
Energy efficient

Design:

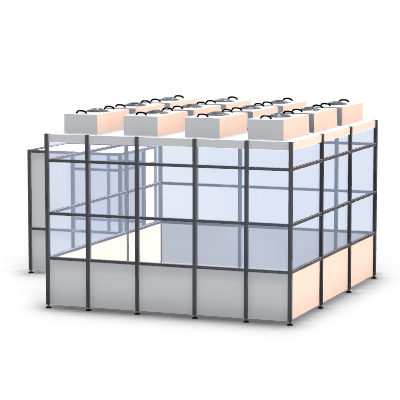

Solid wall segments

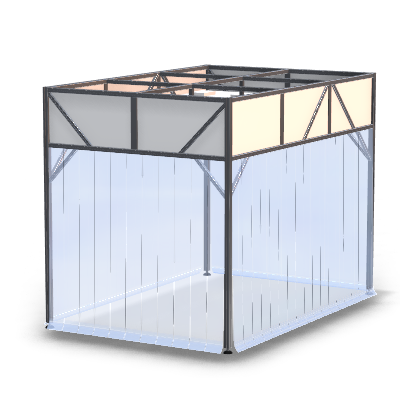

Soft wall segments – PVC stripe curtain
With airlock

Standard configuration:

Cleanroom class from ISO 8 to ISO 4, in accordance with DIN EN ISO 14644-1Vertical laminar airflow
Design for use in laboratories and cleanrooms
Frame constructed from cleanroom compatible anodized aluminium profiles
MCRT filter fan unit with HEPA H14 particle filter and G4 pre-filter
EC fan: low-noise (< 52 dB(A)), vibration-free, and energy efficient
Control unit: MCRT – HBT-01 with color touchscreen display
Filter sensor with optical indicator for filter replacement
LED lighting
Electrical connection: 230 V/16 A/ 50 Hz
Easy to install and operate

Options:

PTFE filter material for superior chemical resistance
ACC filters (Airborn Chemical Contamination) for molecular filtration
Customised dimensions
Sensors for real-time airflow monitoring and control
Temperature and humidity control for environmental stability
Anti-static materials
Ionisation system to reduce electrostatic discharge
Cleanroom furniture and accessories: step-over bench, tables, cabinets, etc.
Monitoring system with data logger for cleanroom condition control
More options available on request
