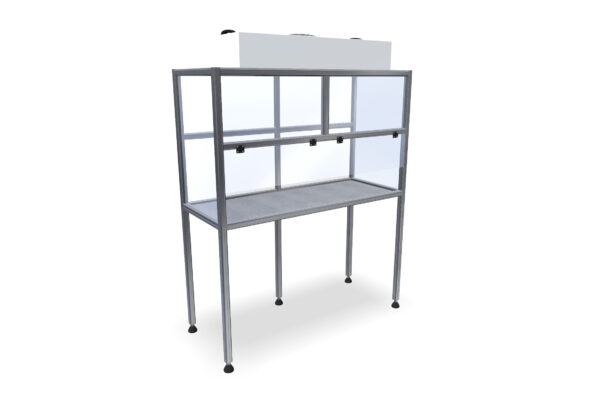

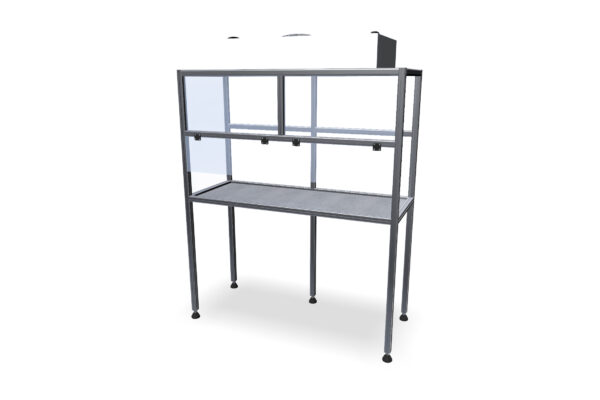

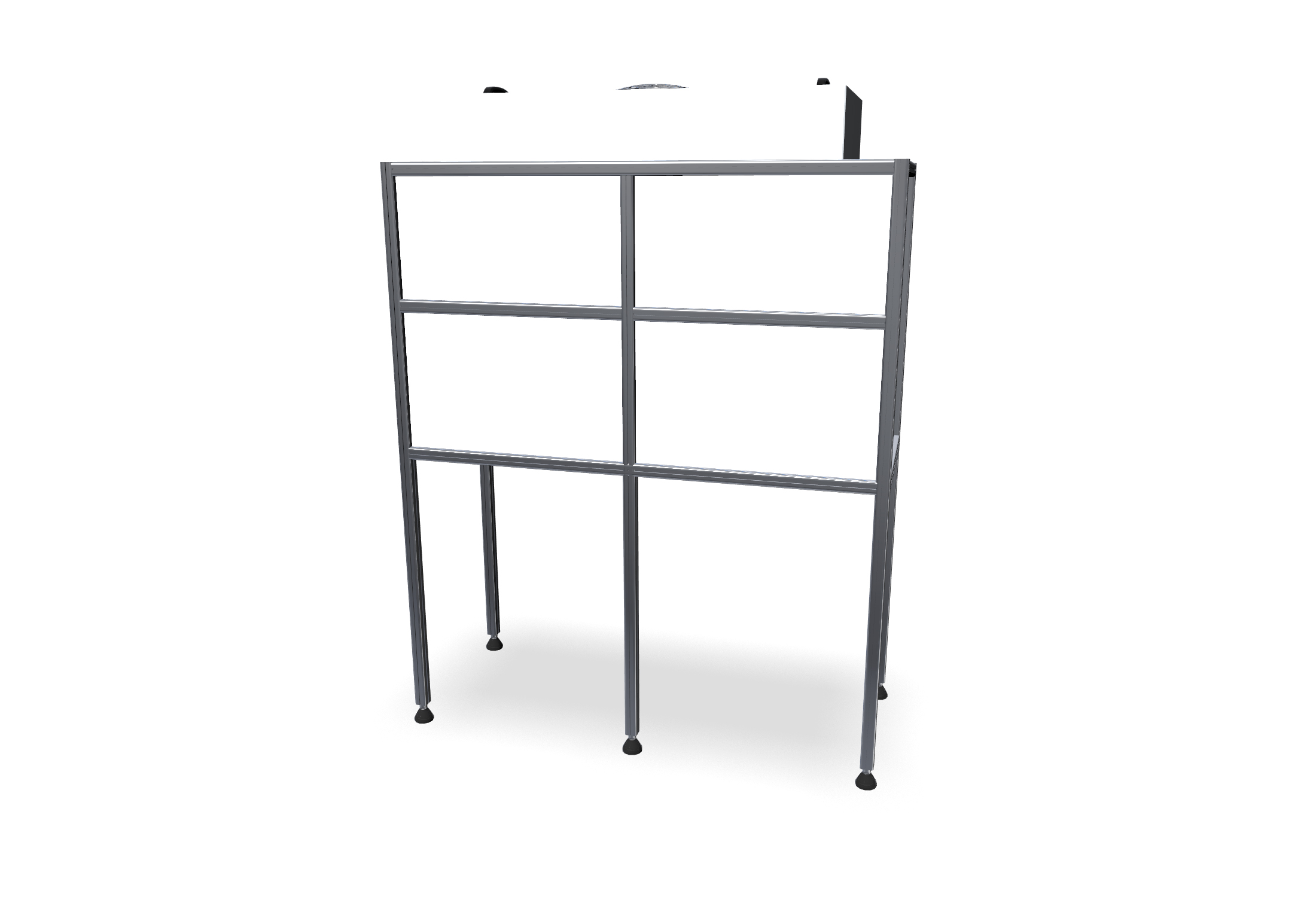

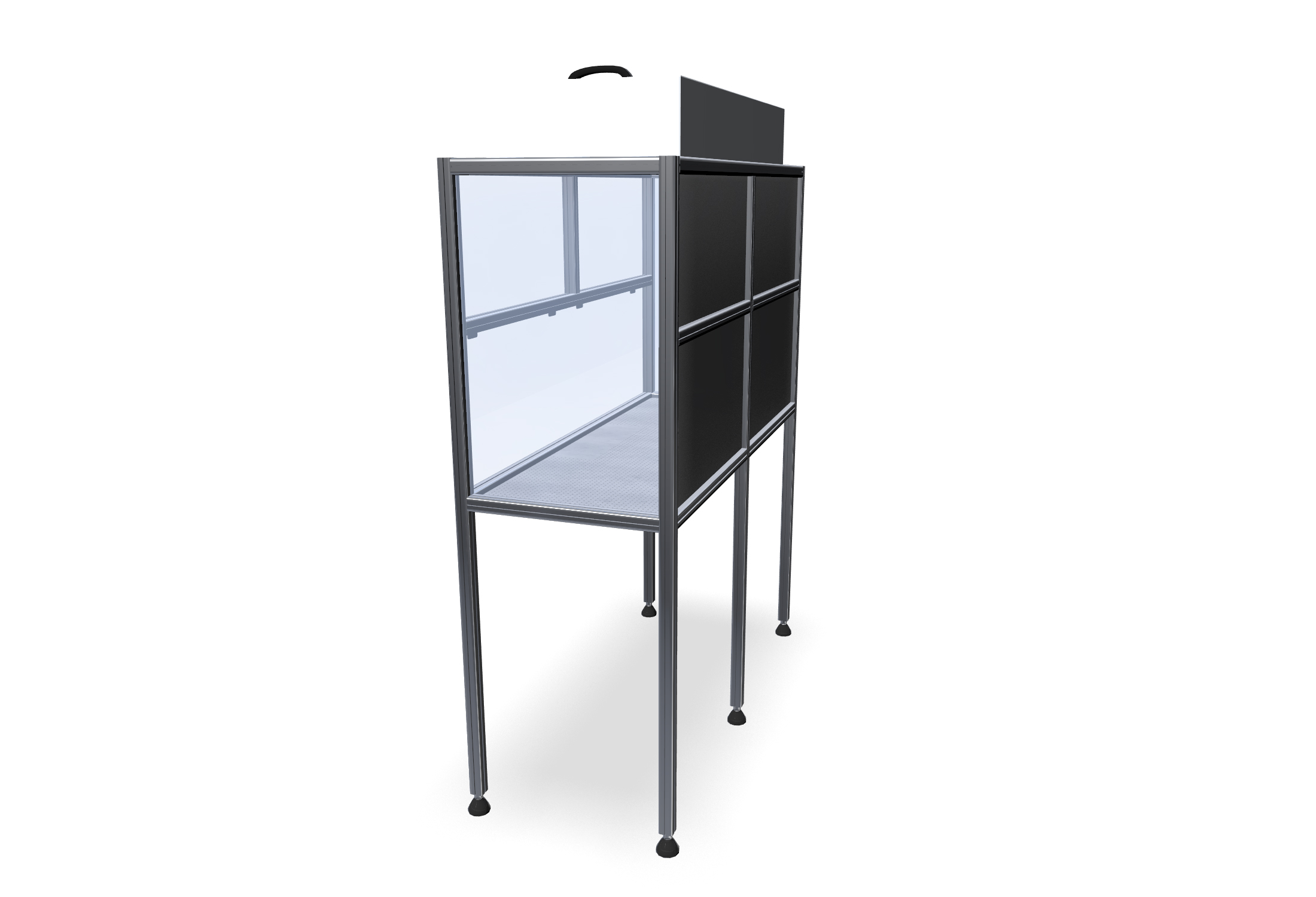

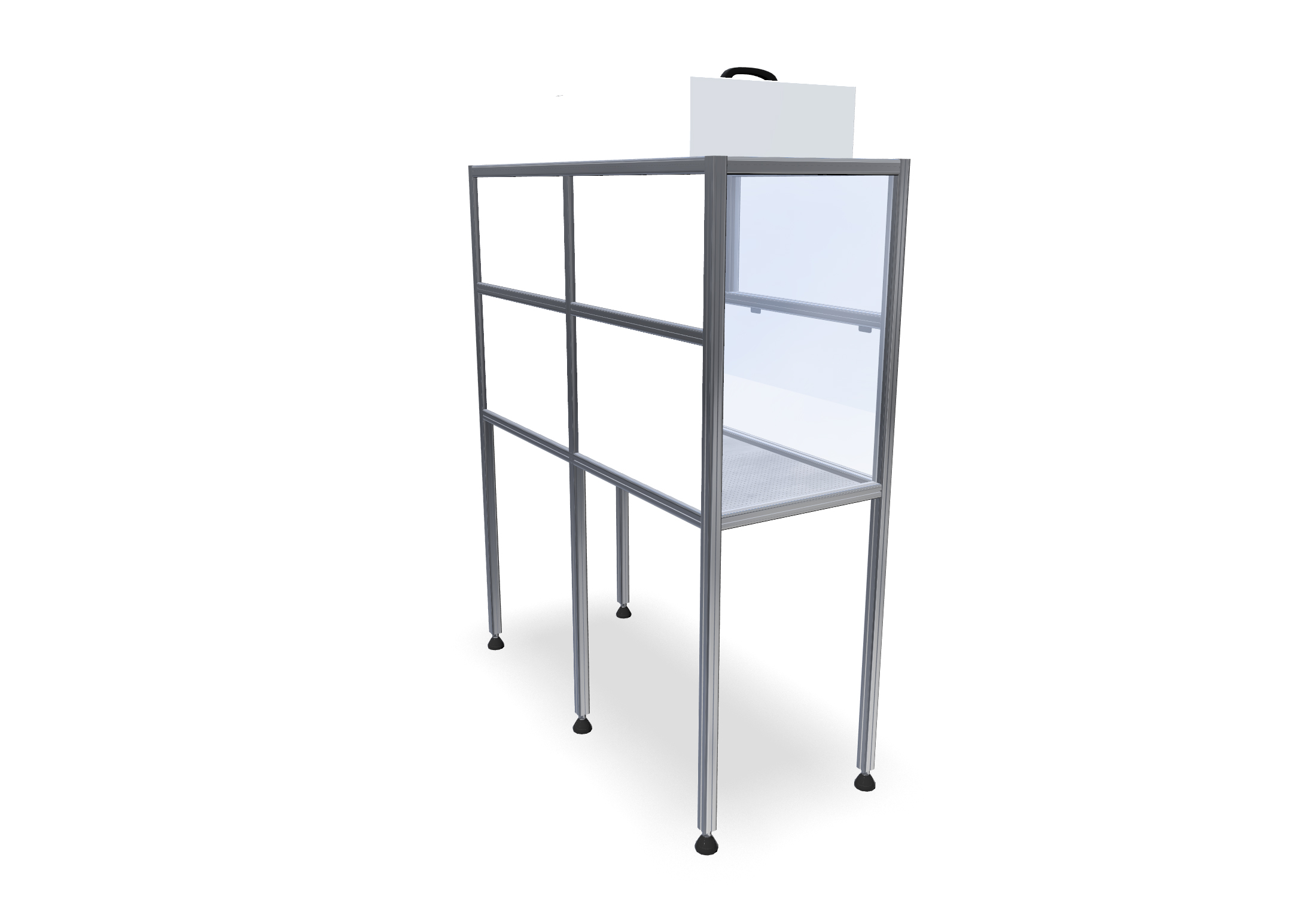

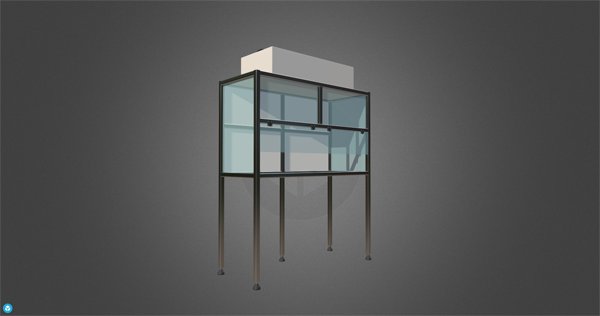

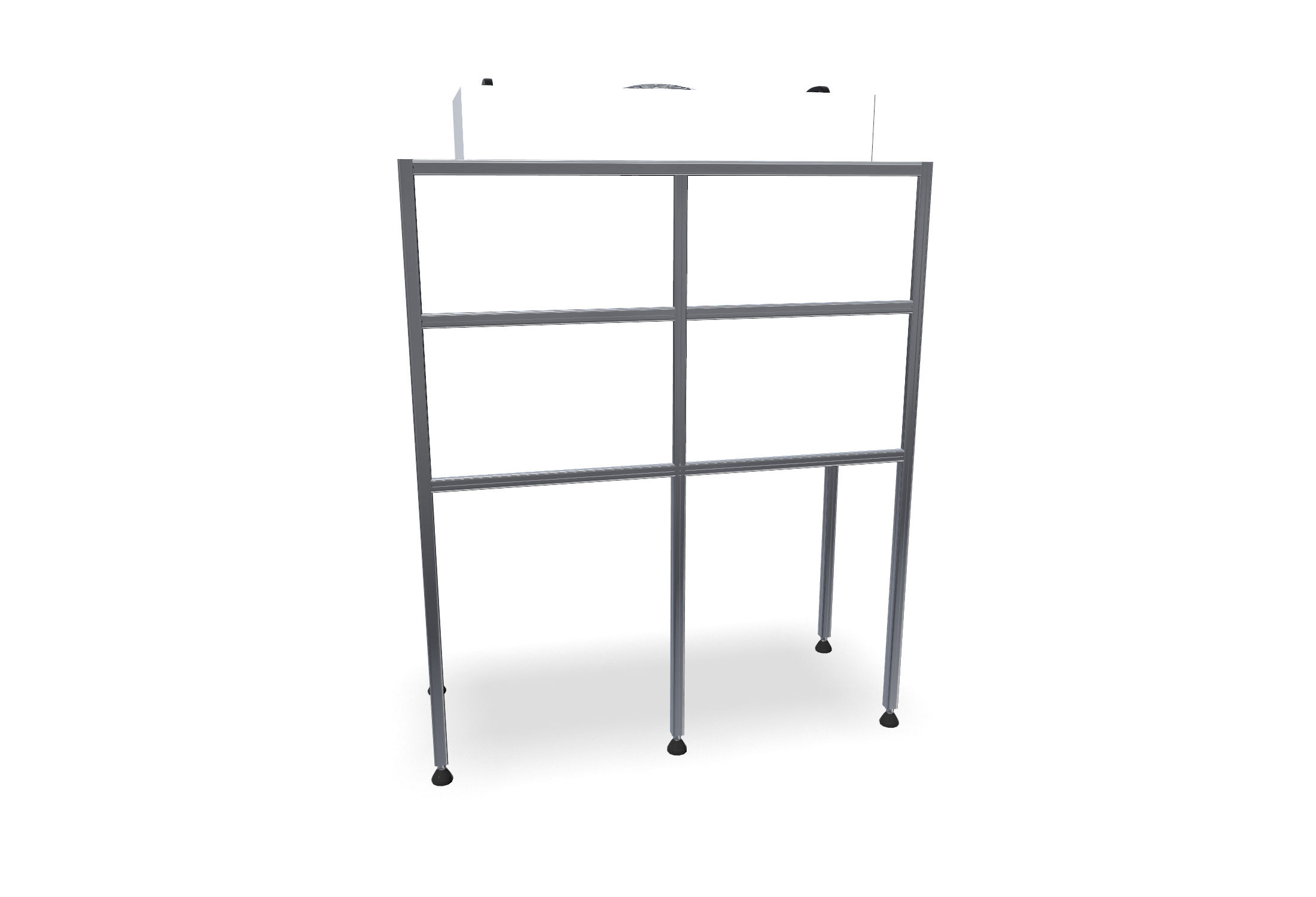

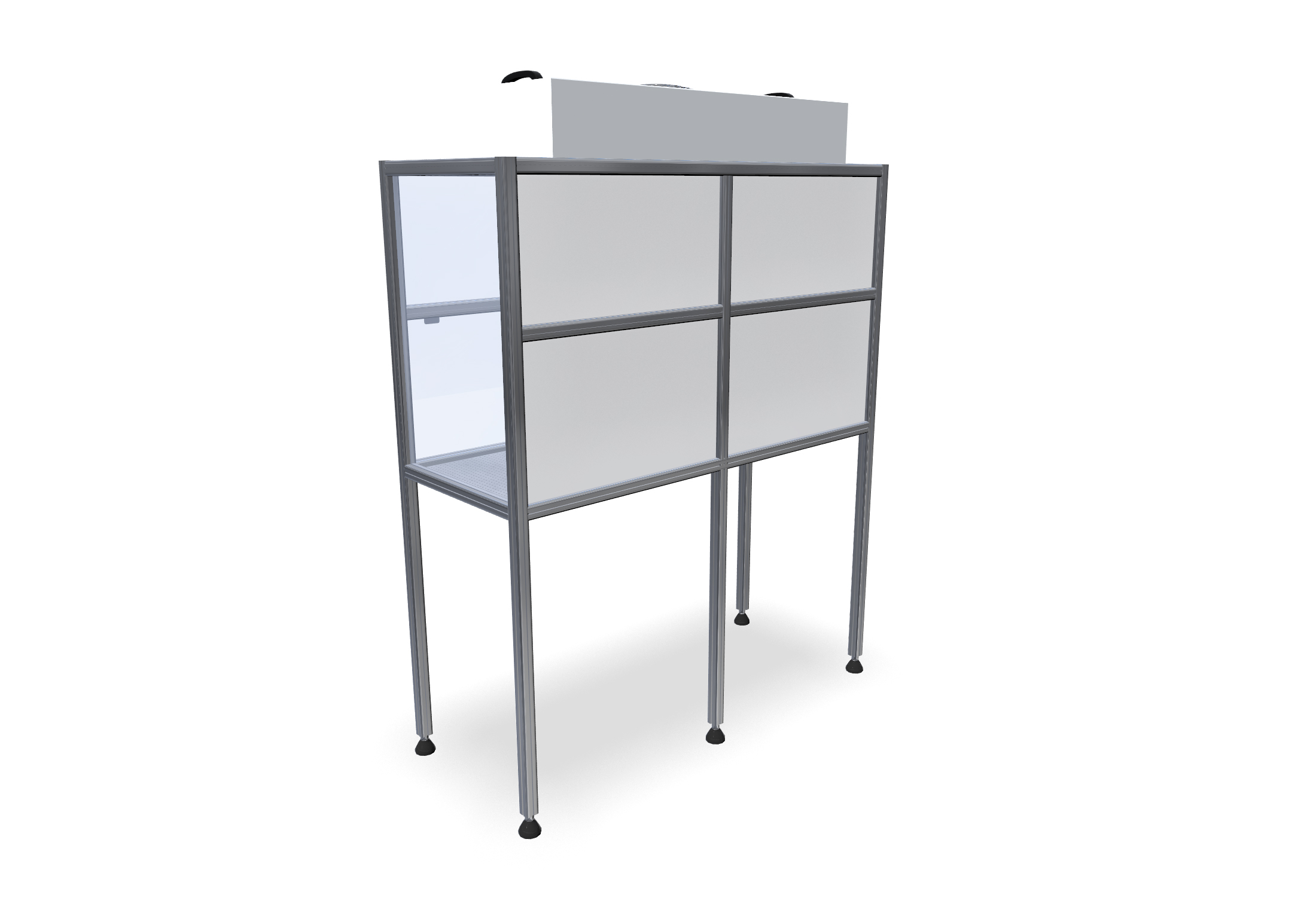

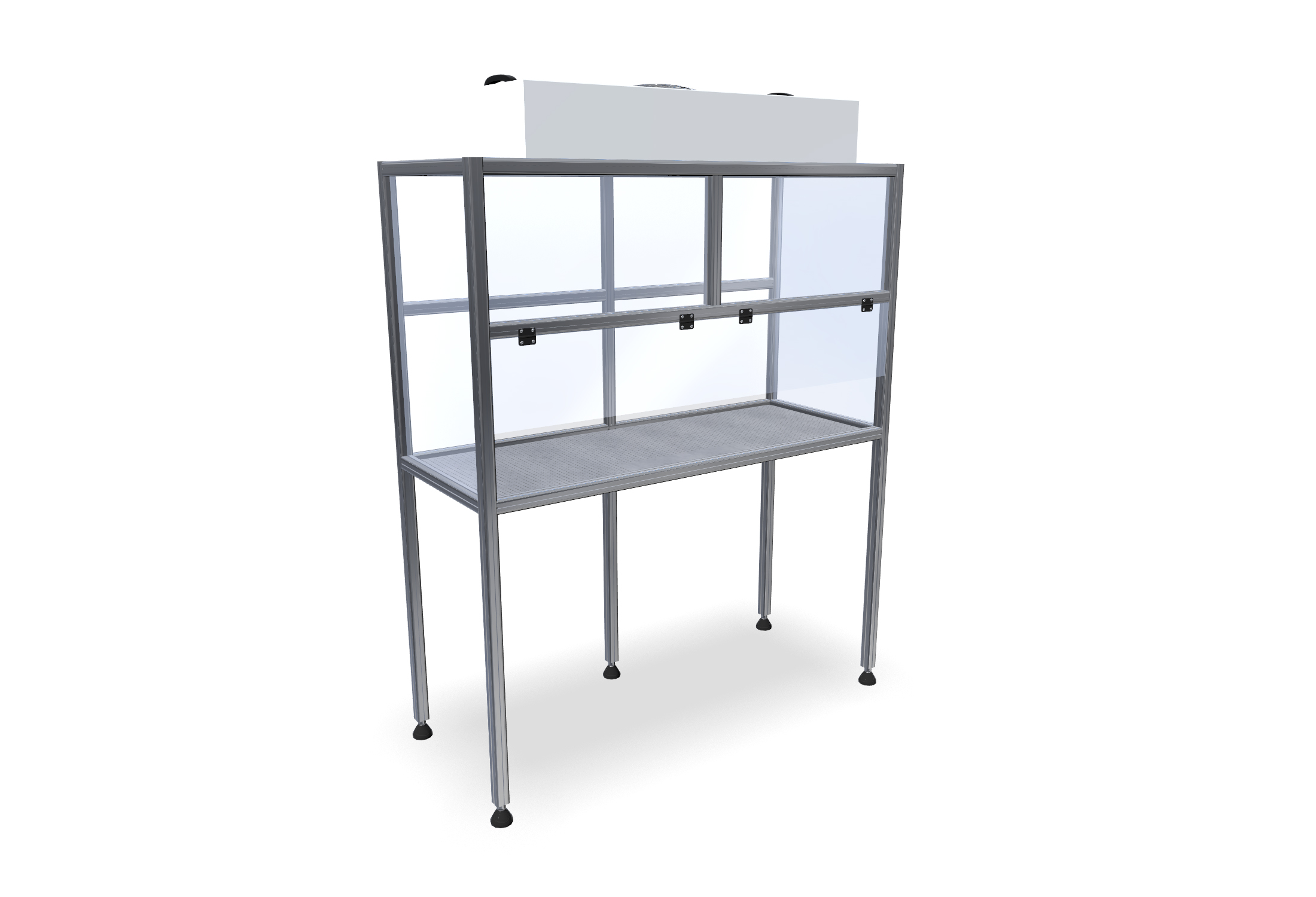

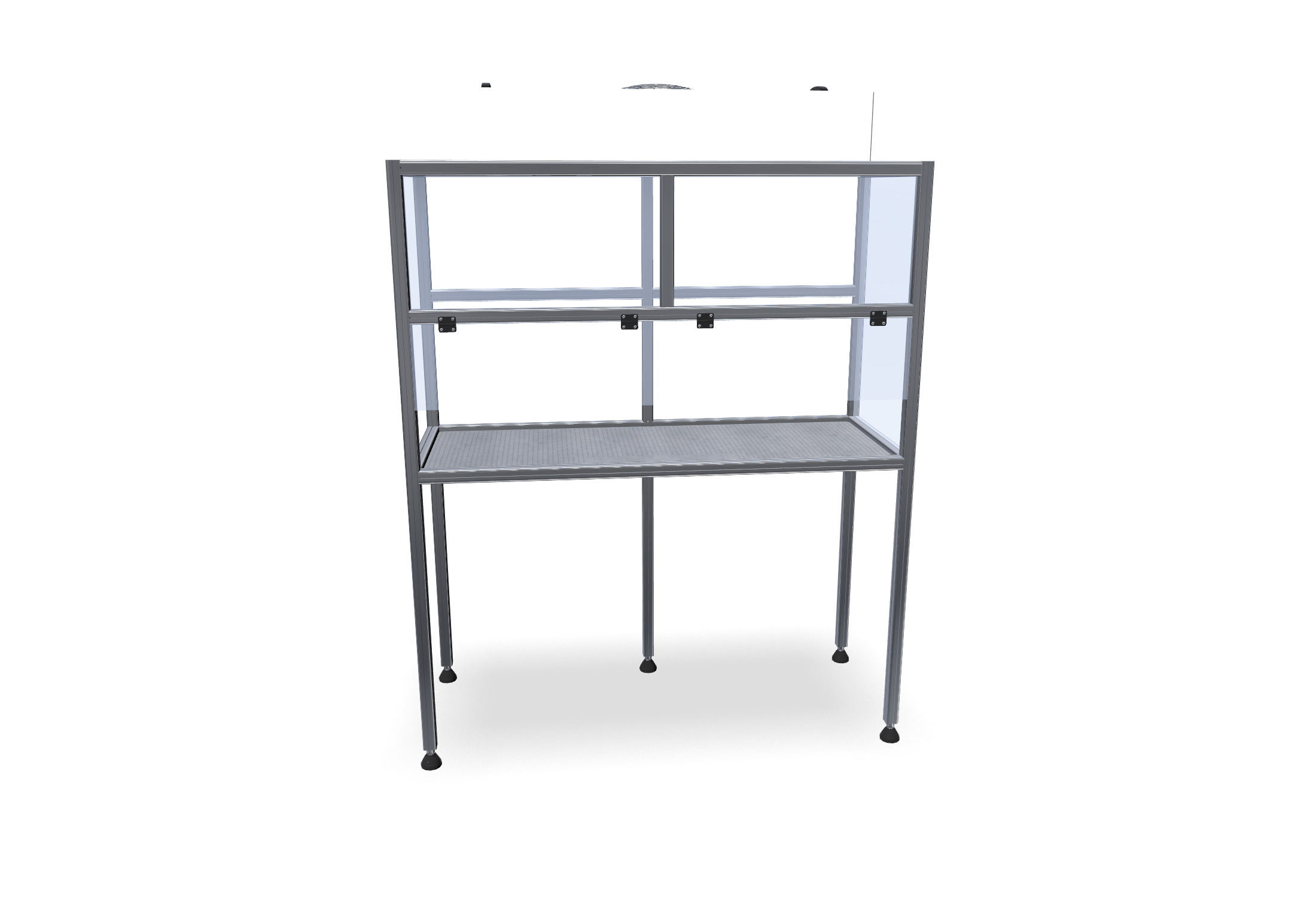

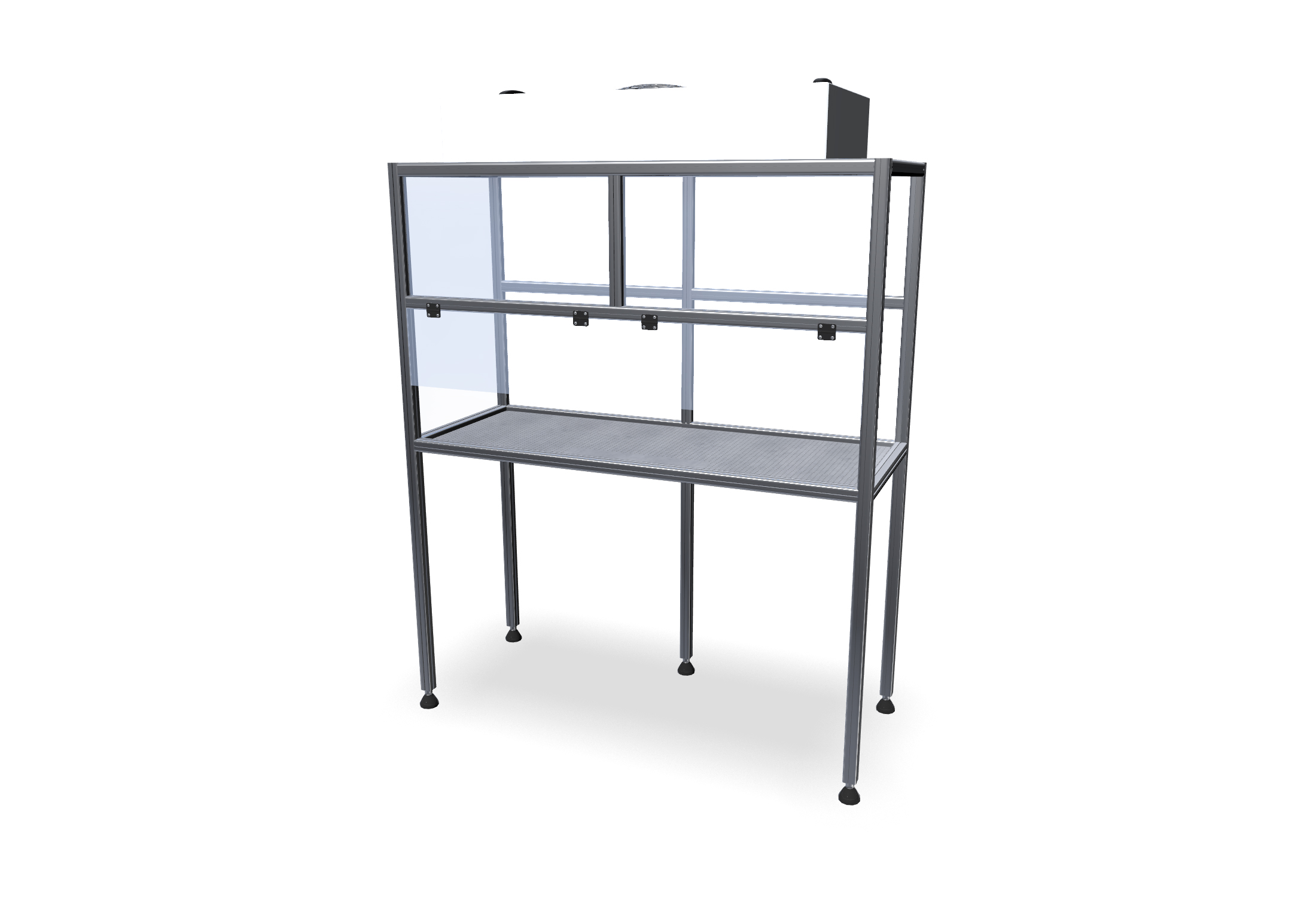

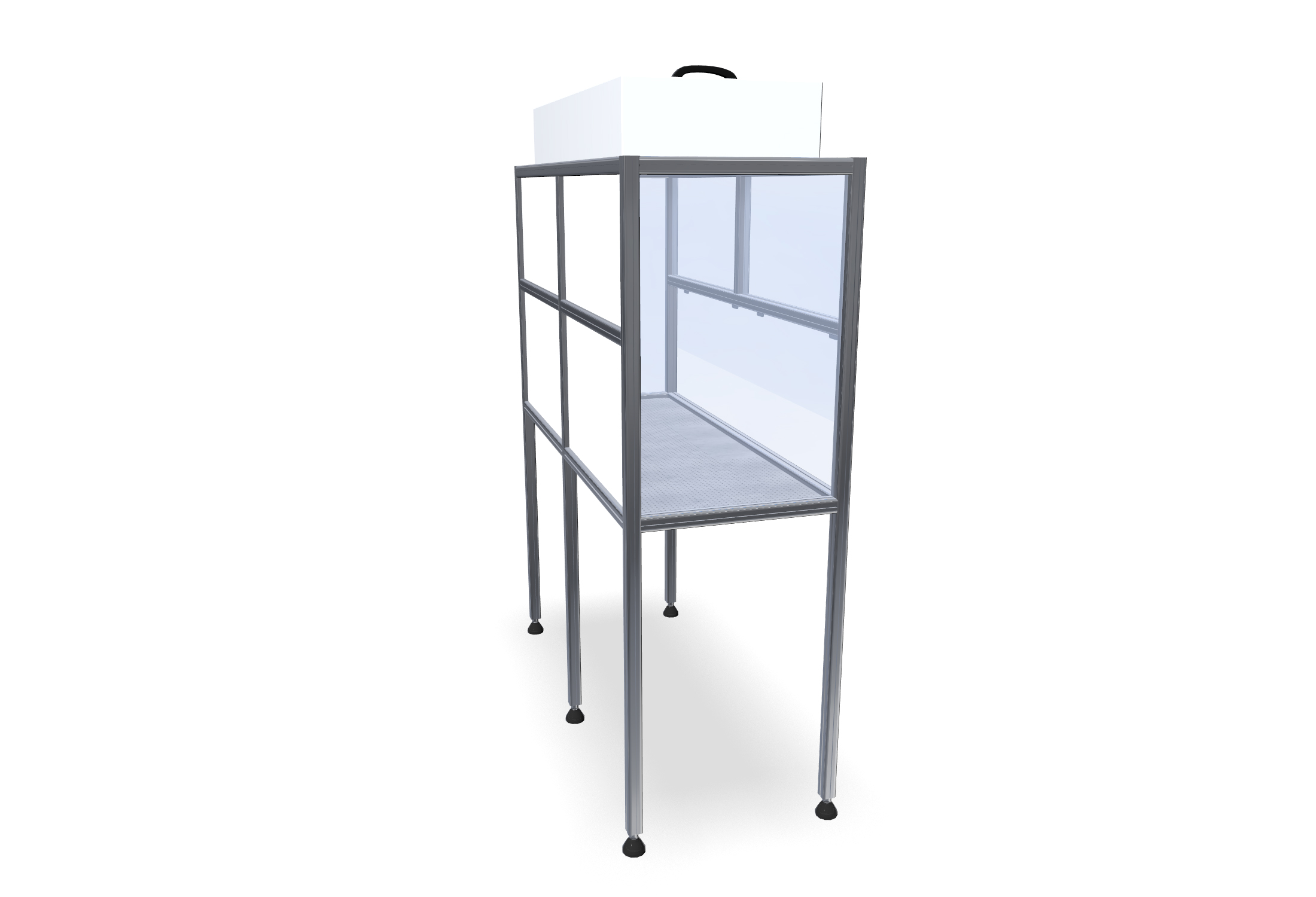

Laminar Flow Workbench

Design:

• Standalone
• Table top
• Mobile

Standard configuration:

• Cleanroom class ISO 5, in accordance with DIN EN ISO 14644-1
• Vertical laminar airflow
• Design for use in laboratories and cleanrooms
• Frame constructed from cleanroom compatible anodized aluminium profiles
• Standard dimensions: 1250 x 650 x 2500 mm (WxDxH),
  standalone version with integrated table

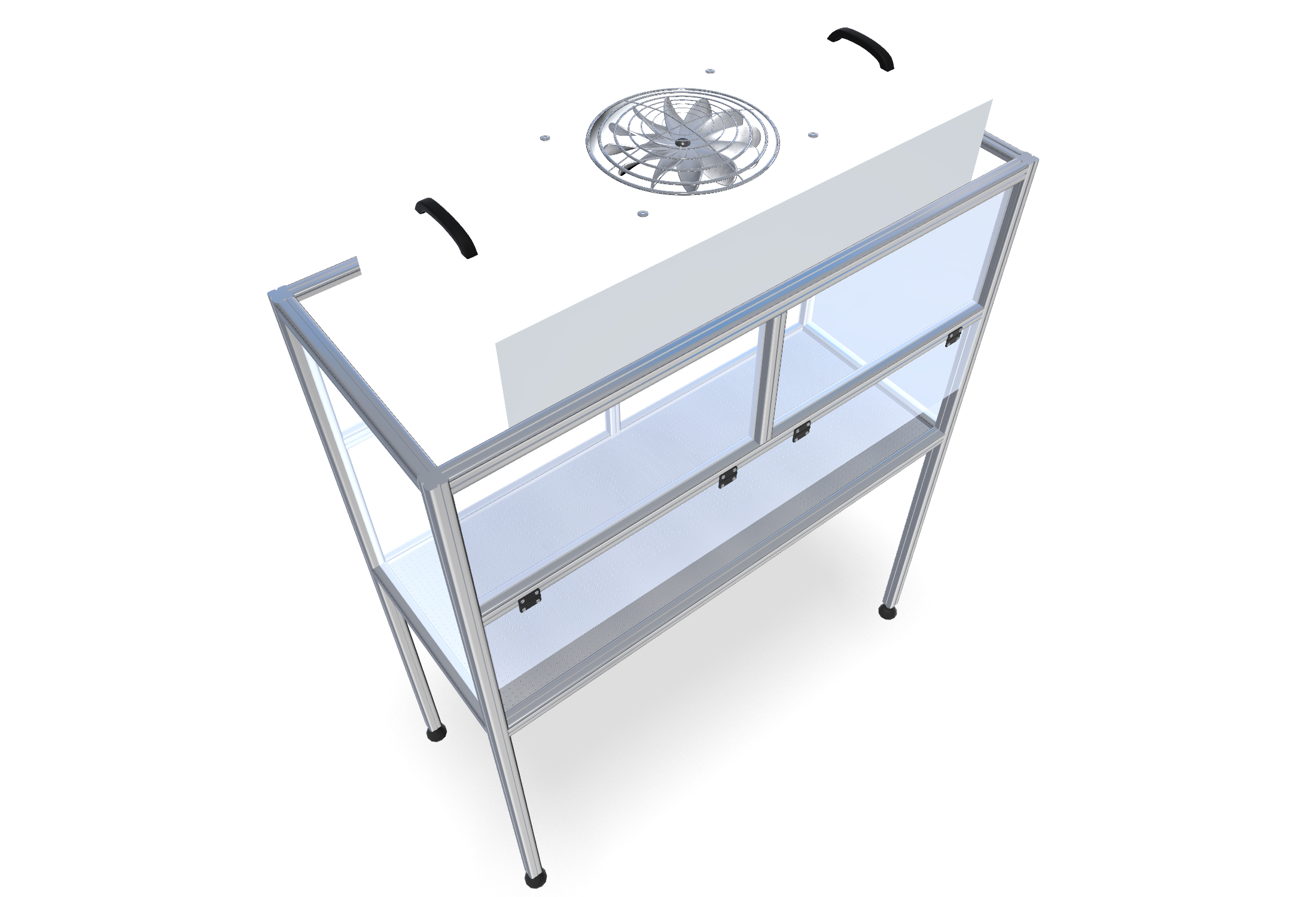

• MCRT filter fan unit with HEPA H14 particle filter and G4 pre-filter
• EC fan: low-noise (< 52 dB(A)), vibration-free, and energy efficient
• Different wall materials available: transparent polycarbonat, glass, etc.
• Foldable front window
• Control unit: MCRT – HBT-01 with color touchscreen display
• Filter sensor with optical indicator for filter replacement
• LED lighting: 500 lux, 4000 K
• Electrical connection: 230 V/16 A/ 50 Hz
• Easy to install and operate

Options:

• Enhanced cleanroom classification: better than ISO 5
• PTFE filter material for superior chemical resistance
• ACC filters (Airborn Chemical Contamination) for molecular filtration
• Customised dimensions
• Front access via sliding door
• Anti-static materials for walls, table, and other components
• Integrated wheels for easy mobility
• Sensors for real-time airflow monitoring and control
• Ionisation system to reduce electrostatic discharge
• Temperature control system for environmental stability
• More options available on request
