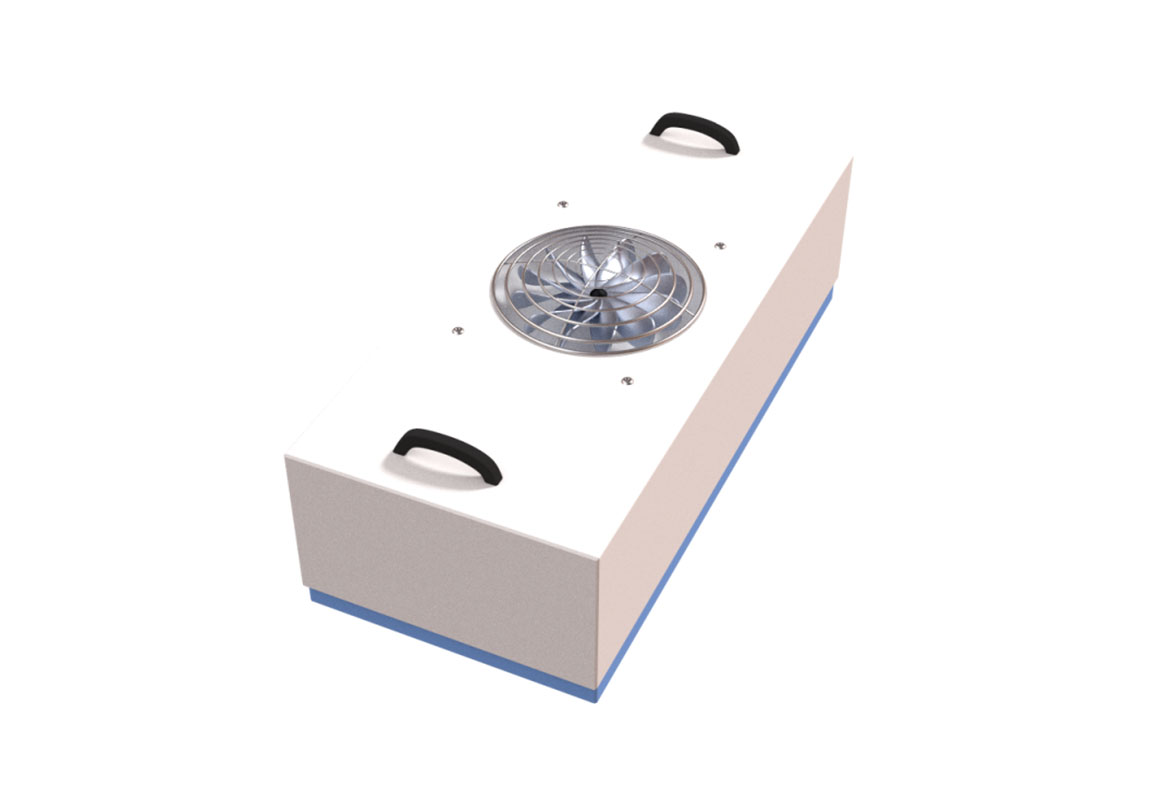

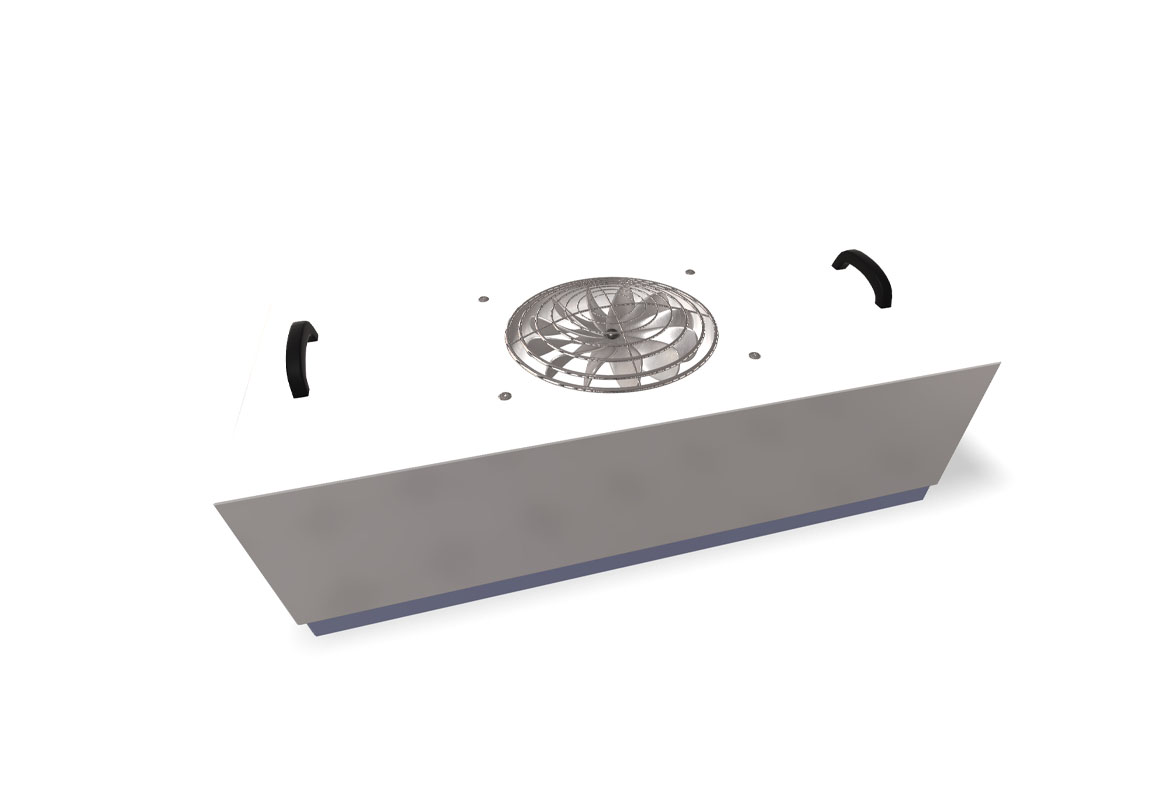

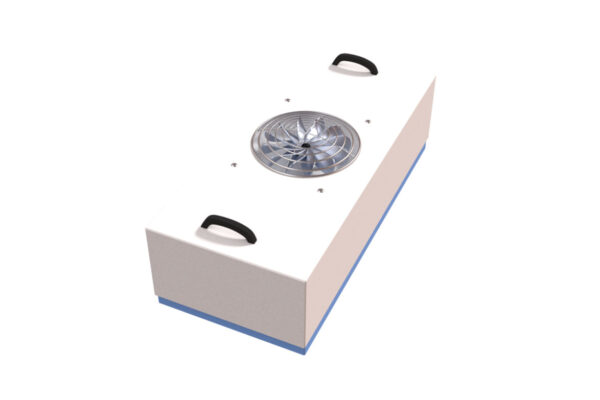

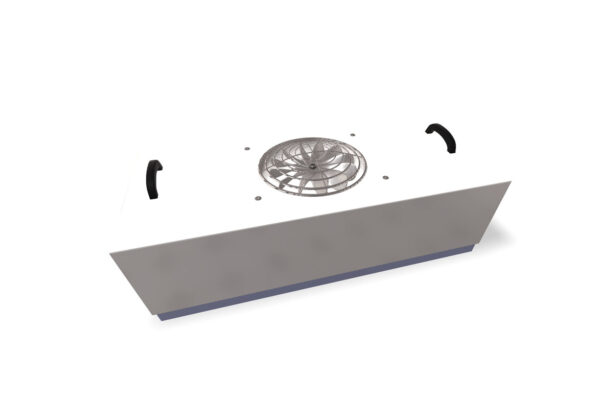

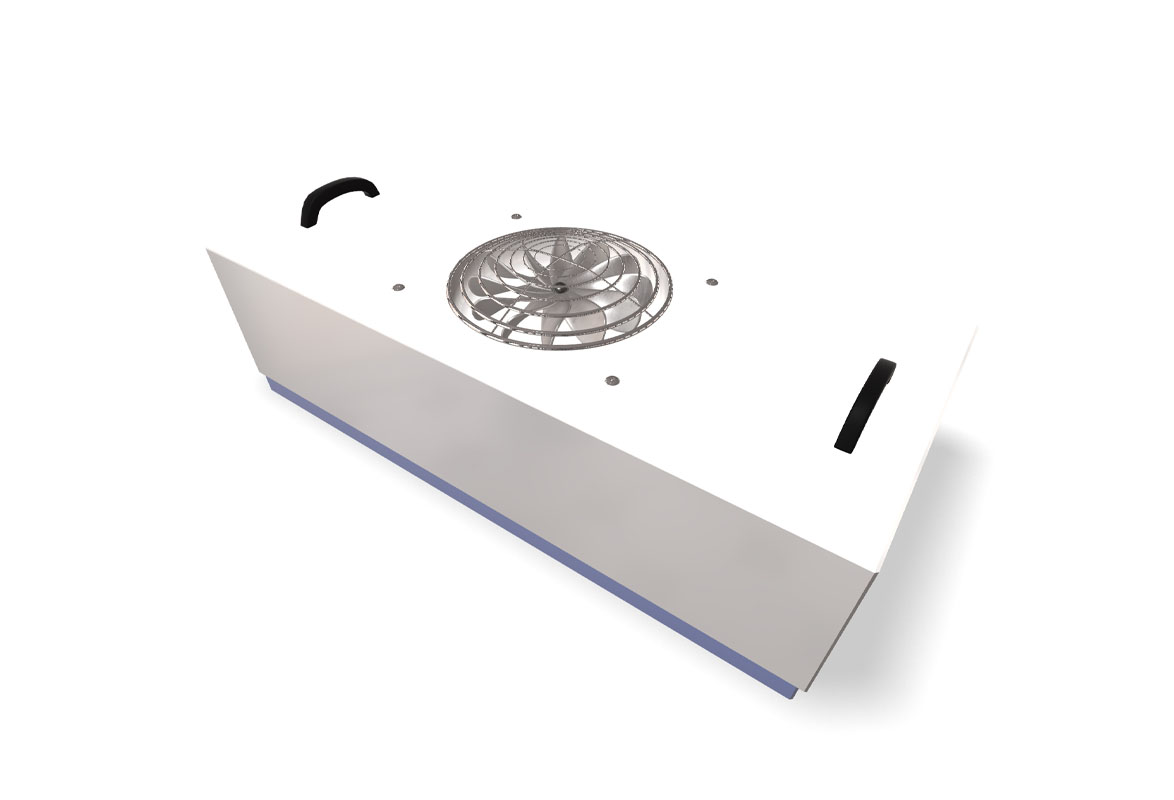

Filter Fan Units

Designed for efficiency, purity, and cleanroom excellence

Vibration-free
Low noise level
Energy efficient

Standard Filter Fan Units:

Casing: blank anodized aluminum sheet, cleanroom-compatible
Filters: HEPA H14 particle filter (efficiency: 99.995%), G4 pre-filter
Fan: high-efficiency EC fan (electronically commutated)
Power supply: 230 V
Noise level: < 52 dB(A) under normal operating conditions
Vibration level: reduced vibration (G 2.5 classification)
Fan control via EBM Bus interface
HEPA filter scan test (DEHS method) with certified test report

Standard Sizes & Airflow Capacity (at 0.45 m/s):

570x570x500 mm (WxLxH): approx. 500 m³/h
570x1170x500 mm (WxLxH): approx. 1000 m³/h
1170x1170x500 mm (WxLxH): approx. 2000 m³/h

Customized Filter Fan Units:

Available in various sizes to meet specific requirements
Ultra-slim design: height from just 200 mm
Filter efficiency up to U16 (99.99995%)
PTFE filter media for enhanced chemical resistance
Fluid sealing for maximum leak-tight integrity
EC fan options: 24 V or 48 V
Fan control interfaces: 0–10 V, EBM Bus, Modbus, and others
Certified filter scan test (PSL method) with detailed report
Built with UL-certified components
Designed in compliance with NFPA standards
